53CAA-E28-D13L | Bourns Electronics GmbH

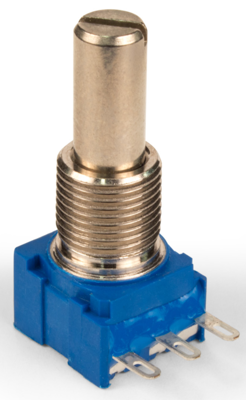

Conductive plastic potentiometer, 5 kΩ, 0.25 W, logarithmisch, solder lug, 53CAA-E28-D13L
Order No.: 06E6949
EAN: 4099879952516
MPN:
53CAA-E28-D13L
Unit Price (€ / pc.)
8.5799 € *
Standard delivery time from the manufacturer is: 10 Weeks
Potentiometer, 53CAA-E28-D13L, Bourns Electronics GmbH
Sealed square control for board washing with metal bushing and shaft.
Features
- Gangable
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Track Taper | logarithmic | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 290 ° | |
| Power | 0.25 W | |
| max. operating temperature | 125 °C | |
| Assembly | straight | |
| min. operating temperature | 1 °C | |
| Version | conductive plastic potentiometer | |
| axle diameter | 3.18 mm | |
| ohmic resistance | 5 kΩ | |
| max. number of revolutions | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
