53AAD-B24-A10L | Bourns Electronics GmbH

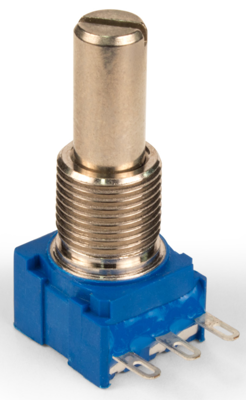

Cermet potentiometer, 1 kΩ, 1 W, linear, solder lug, 53AAD-B24-A10L
Order No.: 06E6942
EAN: 4099879952448
MPN:
53AAD-B24-A10L
Unit Price (€ / pc.)
7.2828 € *
Standard delivery time from the manufacturer is: 10 Weeks
Potentiometer, 53AAD-B24-A10L, Bourns Electronics GmbH
Sealed square control for board washing with metal bushing and shaft.
Features
- Gangable
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Track Taper | linear | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 290 ° | |
| Power | 1 W | |
| max. operating temperature | 125 °C | |
| Assembly | straight | |
| min. operating temperature | 1 °C | |
| Version | cermet potentiometer | |
| axle diameter | 6.35 mm | |
| ohmic resistance | 1 kΩ | |
| max. number of revolutions | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
