53AAA-B24-A18L | Bourns Electronics GmbH

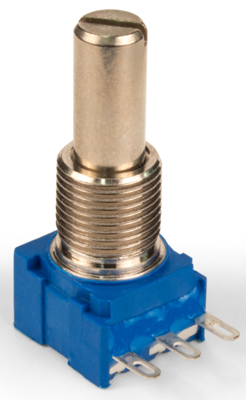

Cermet potentiometer, 50 kΩ, 1 W, linear, solder lug, 53AAA-B24-A18L
Order No.: 06E6937
EAN: 4099879952394
MPN:
53AAA-B24-A18L
Unit Price (€ / pc.)
7.8540 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Potentiometer, 53AAA-B24-A18L, Bourns Electronics GmbH
Sealed square control for board washing with metal bushing and shaft.
Features
- Gangable
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | straight | |
| Mechanic rotary range | 290 ° | |
| Power | 1 W | |
| axle diameter | 6.35 mm | |
| Version | cermet potentiometer | |
| min. operating temperature | 1 °C | |
| Connection | solder lug | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 270 ° | |
| ohmic resistance | 50 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
