51SAD-U13-A13L | Bourns Electronics GmbH

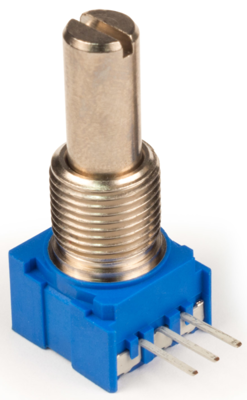

Cermet potentiometer, 5 kΩ, 1 W, linear, solder pin, 51SAD-U13-A13L
Order No.: 06E6929
EAN: 4099879952318
MPN:
51SAD-U13-A13L
Unit Price (€ / pc.)
7.7707 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Potentiometer, 51SAD-U13-A13L, Bourns Electronics GmbH
Sealed square control for board washing with metal bushing and shaft.
Features
- Gangable
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | angled | |
| Mechanic rotary range | 290 ° | |
| Power | 1 W | |
| axle diameter | 3 mm | |
| Version | cermet potentiometer | |
| min. operating temperature | 1 °C | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 270 ° | |
| ohmic resistance | 5 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
