51RAD-R22-B20L | Bourns Electronics GmbH

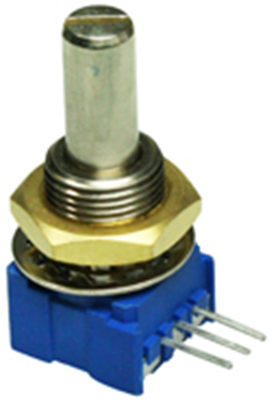

Conductive plastic potentiometer, 100 kΩ, 0.5 W, linear, solder pin, 51RAD-R22-B20L
Unit Price (€ / pc.)
12.4712 € *
Available: 496 pcs.
Total Price:
12.47 € *
Price list
Quantity
Price per unit*
1 pcs.
12.4712 €
10 pcs.
8.9131 €
25 pcs.
7.6160 €
50 pcs.
6.6283 €
100 pcs.
6.0214 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 50.
Design: models 51 and 53 with solder pins or solder tabs on the side, depending on the type. Version: linear. Linearity: ±5.0 %. Operating temperatures: +1.0 to +125 °C. Test voltage: 1500 VAC. Adjustment range: electrical 270°, mechanical 290° (±5.0° each).
Conductive plastic potentiometers with solder pins.
Resistance tolerance: ±20 %. Temperature coefficient: ±1000. Power: 0.5 W.
Technical attributes (type, resistance, shaft diameter, shaft length): 51RAD–R22–B20L, 100K, 6.0 mm, 22 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rotary range, electrical | 270 ° | |
| min. operating temperature | 1 °C | |
| Track Taper | linear | |
| max. operating temperature | 125 °C | |
| Version | conductive plastic potentiometer | |
| Connection | solder pin | |
| Assembly | angled | |
| max. number of revolutions | 1 | |
| Power | 0.5 W | |

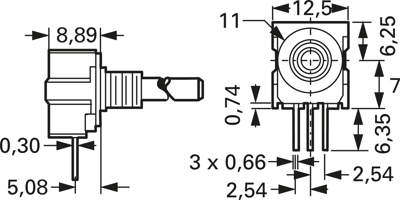

| Width | 13.5 mm | |
| Mechanic rotary range | 290 ° | |
| Length | 12.5 mm | |
| ohmic resistance | 100 kΩ | |
| axle diameter | 6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MX |
| Original Packaging | Bar with 45 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
