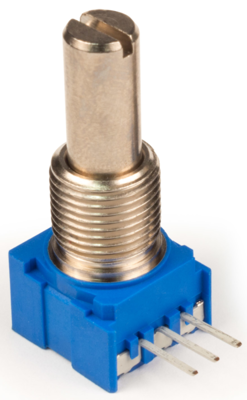

51AAA-B28-A18L | Bourns Electronics GmbH
Cermet potentiometer, 50 kΩ, 1 W, linear, solder pin, 51AAA-B28-A18L
Order No.: 06E6898
EAN: 4099879952004
MPN:
51AAA-B28-A18L
Unit Price (€ / pc.)
8.33 € *
Standard delivery time from the manufacturer is: 10 Weeks
Potentiometer, 51AAA-B28-A18L, Bourns Electronics GmbH
Sealed square control for board washing with metal bushing and shaft.
Features
- Gangable
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 50 kΩ | |
| Connection | solder pin | |
| Mechanic rotary range | 290 ° | |
| Rotary range, electrical | 270 ° | |
| axle diameter | 6.35 mm | |
| max. operating temperature | 125 °C | |
| Power | 1 W | |
| min. operating temperature | 1 °C | |
| Version | cermet potentiometer | |
| Assembly | angled | |
| Track Taper | linear | |
| max. number of revolutions | 1 | |
| Length | 12.49 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 45 pieces |
| Country of origin | MX |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
