39SB-1NB-103 | Bourns Electronics GmbH

Conductive plastic potentiometer, 10 kΩ, 0.25 W, linear, solder pin, 39SB-1NB-103

Order No.: 06E1560
EAN: 4099879951885
MPN:
39SB-1NB-103
39SB-1NB-103 Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
11.9714 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
5,985.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
11.9714 €

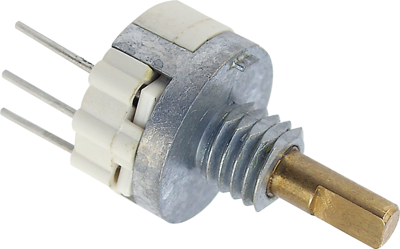

Conductive plastic potentiometer, 39SB-1NB-103, Bourns Electronics GmbH

Single-turn panel control with switch option, PCB mount terminal configuration. With its rugged metal housing this product is suitable for industrial applications.

Features

  • Conductive plastic technology
  • Low profile package
  • 50,000 cycle rotational life
  • RoHS compliant
Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly straight
Mechanic rotary range 270 °
Power 0.25 W
axle diameter 3.18 mm
Version conductive plastic potentiometer
min. operating temperature -40 °C
Connection solder pin
max. operating temperature 85 °C
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
