3862C-206-103AL | Bourns Electronics GmbH
Rotary potentiometer, 10 kΩ, 1 W, linear, solder pin, 3862C-206-103AL
Order No.: 06E1547
EAN: 4099879951755
MPN:
3862C-206-103AL
Unit Price (€ / pc.)
17.7072 € *
Available: 0 pcs.
Leadtime: 21 Weeks **

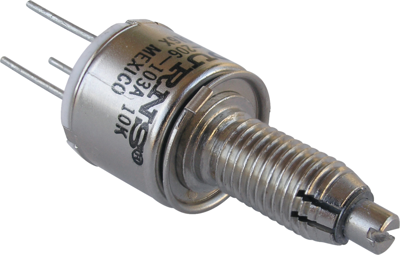

Rotary potentiometer, 3862C-206-103AL, Bourns Electronics GmbH
Single-turn panel control with linear tapers and cermet element.
Features
- Small diameter
- Good resolution
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | straight | |
| Mechanic rotary range | 295 ° | |
| Power | 1 W | |
| Length | 11.51 mm | |
| axle diameter | 3.18 mm | |
| Version | rotary potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 260 ° | |
| ohmic resistance | 10 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
