3852A-282-103AL | Bourns Electronics GmbH

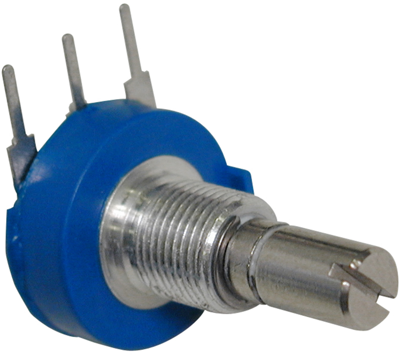

Rotary potentiometer, 10 kΩ, 2 W, linear, solder lug, 3852A-282-103AL
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.6735 € *
Next delivery: 209 pcs. on 2026-11-04
Total Price:
12.67 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6735 €
10 pcs.
11.7453 €
50 pcs.
11.0789 €
100 pcs.
10.4482 €
250 pcs.
9.9484 €
*incl. VAT plus shipping costs
Subject to prior sale
Rotary potentiometer, 3852A-282-103AL, Bourns Electronics GmbH
Panel control with single-turn. This product offers good resolution.
Features
- Minimal depth package
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rotary potentiometer | |
| ohmic resistance | 10 kΩ | |
| Power | 2 W | |
| Assembly | angled | |
| Track Taper | linear | |
| Rotary range, electrical | 250 ° | |
| Mechanic rotary range | 280 ° | |
| max. number of revolutions | 1 | |
| axle diameter | 6.35 mm | |
| Connection | solder lug | |
| Length | 19.05 mm | |
| min. operating temperature | -1 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 45 pieces |
| MSL | MSL 1 |
| Country of origin | MX |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
