3683S-1-103L | Bourns Electronics GmbH
Cermet potentiometer, 10 turns, 10 kΩ, 2 W, linear, solder lug, 3683S-1-103L
Unit Price (€ / pc.)
74.4464 € *
Available: 55 pcs.
Total Price:
74.45 € *
Price list
Quantity
Price per unit*
1 pcs.
74.4464 €
5 pcs.
69.9720 €
15 pcs.
67.2945 €
50 pcs.
64.3314 €
150 pcs.
61.6420 €
*incl. VAT plus shipping costs
Subject to prior sale
Cermet digital potentiometers, type Bourns 3683S.
Precision version, linear; Resolution: 0.1 %. Tolerance: ±1.0 % (full scale). Load rating: 2.0 W at +25 °C (0 W at +85 °C). Operating voltage: max. 500 VAC. Test voltage: 1000 VAC. Tolerance: ±3.0 %. Operating temperatures: –25 to +85 °C. Temperature coefficient: ±100, Montage: Snap in.
Type: 10K
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 2 W | |
| max. number of revolutions | 10 | |
| Connection | solder lug | |
| max. operating temperature | 85 °C | |

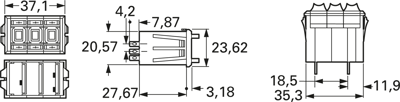

| Length | 37.1 mm | |
| Assembly | straight | |
| Width | 23.62 mm | |
| min. operating temperature | -25 °C | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Version | cermet potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Ammopack with 1 piece |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
