3549S-1AA-502A | Bourns Electronics GmbH

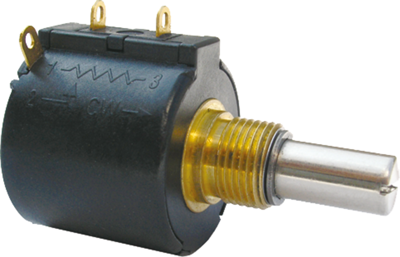

Wire-wound potentiometer, 10 turns, 5 kΩ, 2 W, linear, solder lug, 3549S-1AA-502A
Unit Price (€ / pc.)
30.0951 € *
Next delivery: 42 pcs. on 2025-11-18
Total Price:
30.10 € *
Price list
Quantity
Price per unit*
1 pcs.
30.0951 €
10 pcs.
26.4894 €
20 pcs.
25.7635 €
40 pcs.
25.0376 €
160 pcs.
23.5977 €
*incl. VAT plus shipping costs
Subject to prior sale
Precision wire-wound multi-turn potentiometers, 10 turns, type Bourns 3549.
6.34 mm shaft; Linearity: ±0.2 %. Load rating: 2.0 W. . Electrical and mechanical adjustment range: 3600°. Operating temperatures: –40 to +125 °C. Degree of protection: IP 50.
Wire-wound multi-turn potentiometers, type 3549S.
Tolerance: ±3.0 %. Temperature coefficient: ±50 ppm/°C. Useful life: 2.0 million turns.
Type: 5K0

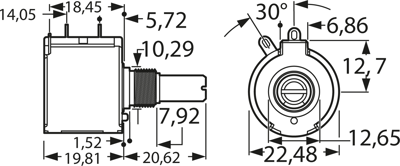

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 3600 ° | |
| Power | 2 W | |
| max. number of revolutions | 10 | |
| Connection | solder lug | |
| max. operating temperature | 125 °C | |
| axle diameter | 6.35 mm | |
| Rotary range, electrical | 3600 ° | |
| Length | 22.48 mm | |
| Assembly | straight | |
| Width | 19.81 mm | |
| min. operating temperature | -40 °C | |
| Track Taper | linear | |
| ohmic resistance | 5 kΩ | |
| Version | wire-wound potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Bar with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85333100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
