3545S-1-502L | Bourns Electronics GmbH

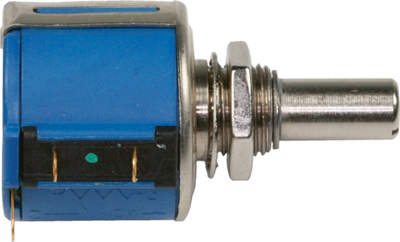

Precision potentiometer, 5 turns, 5 kΩ, 1.5 W, linear, solder lug, 3545S-1-502L
Order No.: 69E1062
EAN: 4099879972309
MPN:
3545S-1-502L
Unit Price (€ / pc.)
30.3807 € *
Standard delivery time from the manufacturer is: 10 Weeks
Wire-wound multi-turn potentiometers, type Bourns 354.
With bushing mount, shaft with adjustment slot; Linearity: ±0.25 %. Operating temperatures: +1.0 to +125 °C. Resistance tolerance: ±5.0%. Test voltage: 1000 VAC. Bushing mount: 3/8 inch x 32 UNEF.
5 turns, type 3545S.
Load rating: 1.5 W at +70 °C, 0 W at +125 °C. Operating voltage: max. 273 VAC, TC: ±50. Electrical and mechanical adjustment range: 1800° (+10°/–0°).
Type: 5K0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. number of revolutions | 5 | |
| Connection | solder lug | |
| Mechanic rotary range | 1800 ° | |
| Track Taper | linear | |
| ohmic resistance | 5 kΩ | |
| Power | 1.5 W | |
| Width | 20 mm | |
| Assembly | straight | |
| max. operating temperature | 125 °C | |
| min. operating temperature | 1 °C | |
| Version | precision potentiometer | |
| Rotary range, electrical | 1800 ° | |
| Length | 22.2 mm | |
| axle diameter | 6.34 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85333100 |
| Country of origin | MX |
| MSL | MSL 1 |
| Original Packaging | Tray with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
