3541H-1-203L | Bourns Electronics GmbH

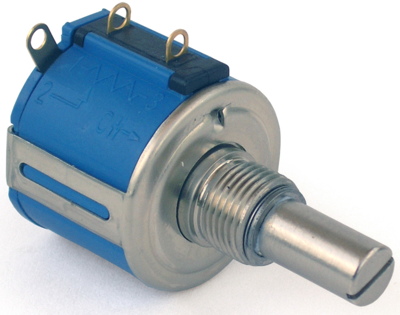

Precision potentiometer, 10 turns, 20 kΩ, 2 W, linear, solder lug, 3541H-1-203L

Order No.: 06E1302
EAN: 4099879949363
MPN:
3541H-1-203L
3541H-1-203L Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
33.1177 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
3,311.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
33.1177 €

Precision potentiometer, 3541H-1-203L, Bourns Electronics GmbH

Precision potentiometer with bushing mount, gangable with common or concentric shafts.

Features

  • High torque
  • RoHS compliant
Technical specifications
max. number of revolutions 10
Track Taper linear
Assembly straight
Mechanic rotary range 3600 °
Power 2 W
Length 39.67 mm
axle diameter 6.34 mm
Version precision potentiometer
min. operating temperature -40 °C
Connection solder lug
max. operating temperature 125 °C
Rotary range, electrical 3600 °
ohmic resistance 20 kΩ
Logistics
Country of origin MX
Customs tariff number 85333100
MSL MSL 1
Original Packaging Tray with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
