3501H-1-503L | Bourns Electronics GmbH

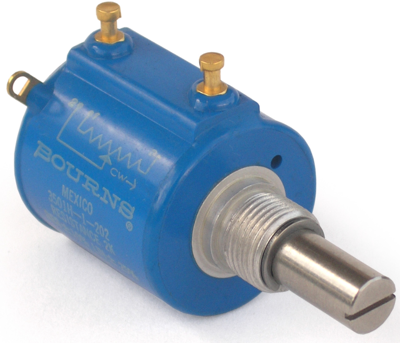

Precision potentiometer, 10 turns, 50 kΩ, 2 W, linear, solder lug, 3501H-1-503L

Order No.: 06E1290
EAN: 4099879949240
MPN:
3501H-1-503L
3501H-1-503L Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
88.4051 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
4,420.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
88.4051 €

Precision potentiometer, 3501H-1-503L, Bourns Electronics GmbH

Sealable precision potentiometer with bushing mount.

Features

  • Gangable
  • RoHS compliant
Technical specifications
max. number of revolutions 10
Track Taper linear
Assembly straight
Mechanic rotary range 3600 °
Power 2 W
Length 46.04 mm
axle diameter 6.34 mm
Version precision potentiometer
min. operating temperature 1 °C
Connection solder lug
max. operating temperature 125 °C
Rotary range, electrical 3600 °
ohmic resistance 50 kΩ
Logistics
Country of origin MX
Customs tariff number 85333100
MSL MSL 1
Original Packaging Bulk with 5 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
