3048L-2-103 | Bourns Electronics GmbH

Linear potentiometer, 10 kΩ, 0.12 W, linear, stranded wires, 3048L-2-103

Order No.: 06E1094
EAN: 4099879947994
MPN:
3048L-2-103
3048L-2-103 Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
36.6996 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1,834.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
36.6996 €

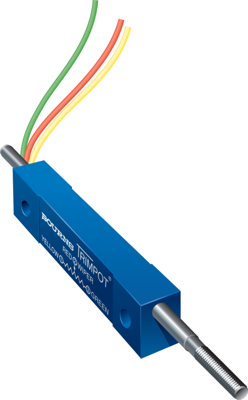

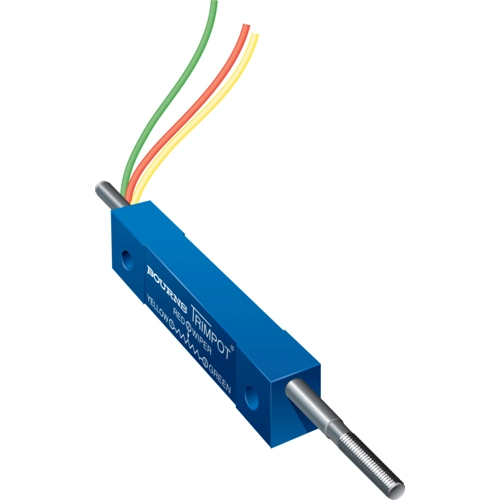

Linear potentiometer, 3048L-2-103, Bourns Electronics GmbH

Linear motion potentiometer with flexible wire leads and free shaft rotation.

Features

  • Compact
  • Lightweight
  • Long life
  • Infinite resolution
  • Economical
  • RoHS compliant
Technical specifications
Track Taper linear
Width 8.28 mm
Power 0.12 W
Length 31.75 mm
Version linear potentiometer
min. operating temperature -55 °C
Connection stranded wires
max. operating temperature 125 °C
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
