3046L-3-252 | Bourns Electronics GmbH

Linear potentiometer, 2.5 kΩ, 0.125 W, linear, stranded wires, 3046L-3-252

Order No.: 06E1091
EAN: 4099879947963
MPN:
3046L-3-252
3046L-3-252 Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
15.9103 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
795.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
15.9103 €

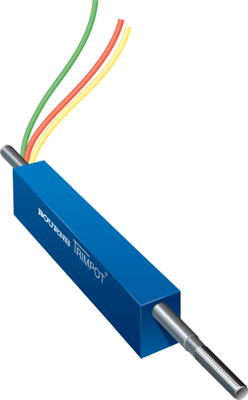

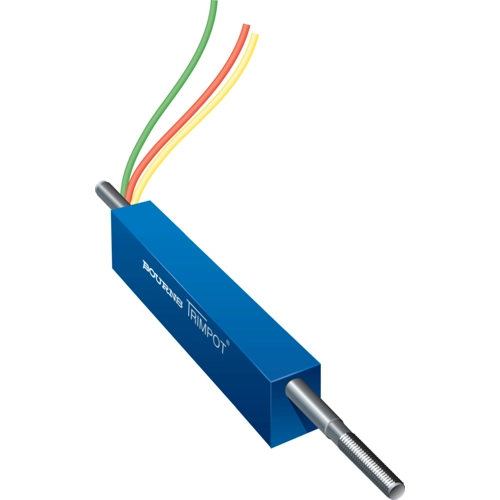

Linear potentiometer, 3046L-3-252, Bourns Electronics GmbH

Linear motion potentiometer with flexible wire leads and free shaft rotation.

Features

  • Compact
  • Sealed
  • Long life
  • Infinite resolution
  • Economical
  • RoHS compliant
Technical specifications
Track Taper linear
Width 5.69 mm
Power 0.125 W
Length 19.68 mm
Version linear potentiometer
min. operating temperature -55 °C
Connection stranded wires
max. operating temperature 125 °C
ohmic resistance 2.5 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 25 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
