0621-013K500-AB103 | Bourns Electronics GmbH

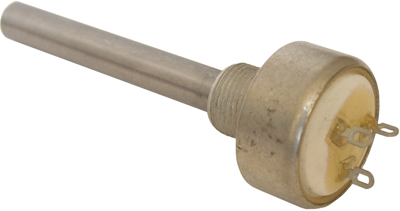

Rotary potentiometer, 10 kΩ, 2 W, linear, solder lug, 0621-013K500-AB103
Unit Price (€ / pc.)
17.2788 € *
Standard delivery time from the manufacturer is: 35 Weeks
Rotary potentiometer, 0621-013K500-AB103, Bourns Electronics GmbH
Rotary potentiometer with sealed construction housing and cermet resistive element.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Mechanic rotary range | 270 ° | |
| max. number of revolutions | 1 | |
| Assembly | straight | |
| Track Taper | linear | |
| min. operating temperature | -55 °C | |
| Connection | solder lug | |
| Length | 60.2 mm | |
| Power | 2 W | |
| axle diameter | 6 mm | |
| ohmic resistance | 10 kΩ | |
| Version | rotary potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | HU |
| Original Packaging | Bulk with 32 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
