AMS22U5A1BLARL334 | Bourns Electronics GmbH

SENSOR AMS22U5A1BLARL334

Order No.: 51G2085
EAN: 4099889458374
MPN:
AMS22U5A1BLARL334
AMS22U5A1BLARL334 Bourns Electronics GmbH Position Sensors
Image may differ
Unit Price (€ / pc.)
62.4155 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
3,120.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
62.4155 €

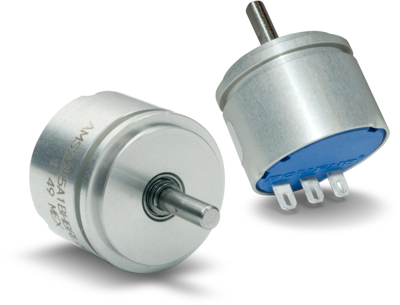

Analogue position sensor, AMS22U5A1BLARL334, Bourns

Features

  • Non-contacting magnetic technology
  • Highly resistant to vibration/shock
  • Highly resistant to fluid/dust ingress
  • Programmable at factory for zero position
Technical specifications
Filter Property Value
Rated voltage (DC) 5 V
max. operating temperature 125 °C
Degree of protection (IP) IP50
Number of pins 3
min. operating temperature -40 °C
Version analog
Assembly panel mounting
Rated current 20 mA
Revolutions 340 °
Logistics
Property Value
Country of origin MX
Original Packaging Tray with 25 pieces
MSL MSL 1
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
