AMM20B5A1CLASL380 | Bourns Electronics GmbH
Magnetic multi-turn position sensor, -40 °C, 125 °C, 3600 °
Order No.: 18G555
EAN: 4099889458152
MPN:
AMM20B5A1CLASL380
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
37.1994 € *
Standard delivery time from the manufacturer is: 16 Weeks

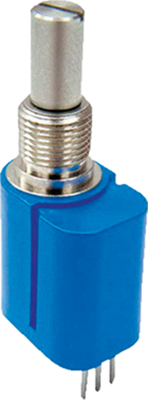

Magnetic multiturn position sensors, type Bourns AMM20B.
Non-contacting magnetic technology, highly resistant to vibration/shock, highly resistant to fl uid/dust ingress, programmable slope, robust design for industrial applications, ideal memory positioning sensor.
Number of revolutions: 10
Degree of protection: IP 50.
Type: AMM20B5A1CLASL380, position sensor
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | analog | |
| Assembly | THT | |
| Revolutions | 3960 ° | |
| Rated voltage (DC) | 5 V | |
| Rated current | 20 mA | |
| Number of pins | 3 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Degree of protection (IP) | IP50 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Tray with 45 pieces |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
