PEC16-4220F-S0024 | Bourns Electronics GmbH

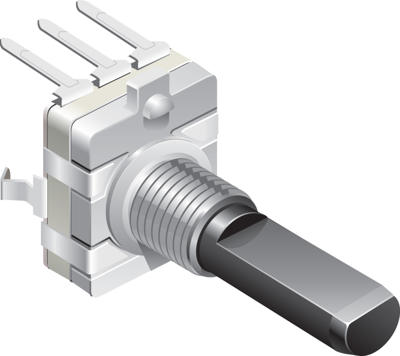

Incremental encoder, 5 V, impulses 24, PEC16-4220F-S0024
Unit Price (€ / pc.)
2.1301 € *
Available: 598 pcs.
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
50 pcs.
1.8088 €
100 pcs.
1.7374 €
200 pcs.
1.6660 €
1000 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Motion Sensors, PEC16-4220F-S0024, Bourns
Features
- Compact design, and long life
- Low cost compared to optical type encoders
- High reliability
- Available in a wide variety of configurations to meet many user requirements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pulses per revolution | 24 | |
| Voltage | 5 V | |
| Connection | solder pin | |
| Length | 31.5 mm | |
| Product type | incremental encoder | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85437090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
