PEC12R-4225F-S0024 | Bourns Electronics GmbH

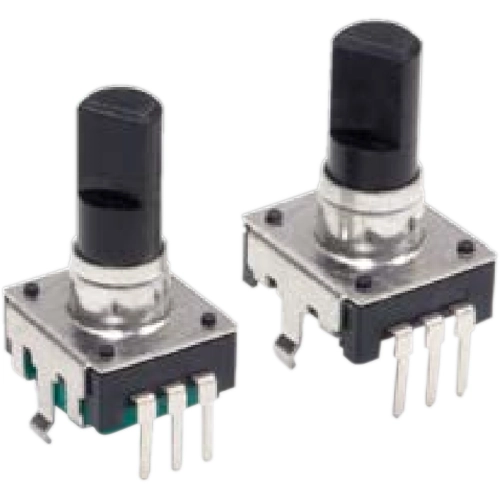

Incremental encoder, 5 V, impulses 24, PEC12R-4225F-S0024
Unit Price (€ / pc.)
2.2491 € *
Next delivery: 75 pcs. on 2025-12-04
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
1.6065 €
100 pcs.
1.3804 €
500 pcs.
1.1900 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale
Incremental encoder, PEC12R-4225F-S0024, Bourns Electronics GmbH
Output: 2-bit quadrature code. Contact rating: 10 mA at 5.0 VDC. Insulation resistance: 10 Mohm. Rotary rate: max. 100/min. Operating temperatures: -30 to + 70 °C. Degree of protection: IP 40.
Horizontal, with momentary switch, type PEC12R-..-S..

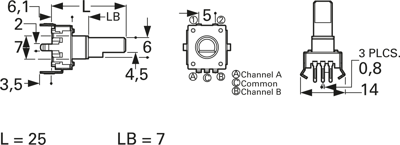

Technical attributes (type, detent, dimensions): PEC12R-4225F-S0024, 24, L 25, LB 7.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | incremental encoder | |
| Pulses per revolution | 24 | |
| Length | 25 mm | |
| Voltage | 5 V | |
| Connection | solder pin | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 75 pieces |
| MSL | MSL 1 |
| Customs tariff number | 90318020 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
