EMS22D51-B28-LS5 | Bourns Electronics GmbH

Magnetic encoder, 3.3-5 V, impulses 512, EMS22D51-B28-LS5

Order No.: 18G553
EAN: 4099889450743
MPN:
EMS22D51-B28-LS5
Series: EMS22

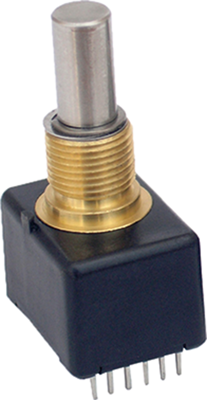

EMS22D51-B28-LS5 Bourns Electronics GmbH Motion Sensors Image 1
EMS22D51-B28-LS5 Bourns Electronics GmbH Motion Sensors Image 2
Image may differ
Unit Price (€ / pc.)
45.6841 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,918.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
42 pcs.
45.6841 €

Magnetic encoder, EMS22D51-B28-LS5, Bourns Electronics GmbH

With axial pins; Supply voltage: 5.0 V. Insulation resistance: 1.0 Mohm. Mechanical turning angle: 360°. Shaft length: 7/8 inch. Operating temperatures: -40 to +125 °C. Degree of protection: IP 65.

For direction and step sensing, type EMS22D.

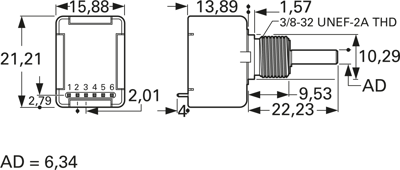

Technical attributes (type, shaft diameter OD, ball bearings, resolution): EMS22D51-B28-LS5, 7/8 inch, OD 6.34 mm, single, 64 to 512 PPR.

Technical specifications
Assembly PCB mounting
Length 36.11 mm
Product type magnetic encoder
Voltage 3.3-5 V
Connection solder pin
Pulses per revolution 512
Logistics
Country of origin MX
Customs tariff number 90318020
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
