EM14A0D-C24-L064N | Bourns Electronics GmbH
Optical rotary encoder, 5 V, impulses 64, EM14A0D-C24-L064N
Unit Price (€ / pc.)
29.1907 € *
Standard delivery time from the manufacturer is: 10 Weeks

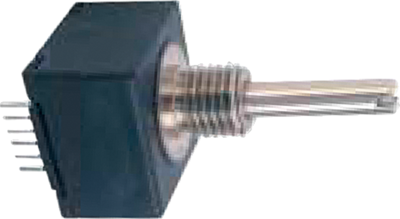

Optoelectronic rotary encoder, EM14A0D-C24-L064N, Bourns Electronics GmbH
Features: channel A with clockwise 90° phase offset leading channel B. Square-wave signal, compatible to HCMOS, CMOS and TTL. Outlet: 2-bit quadrature code. Supply voltage: 5.0 VDC. Input current: 26 mA. Output voltage: max. 0.8 V (low output), min. 4.0 V (high output). Rise and decay time: 200 ns. Speed max. 120 rpm. Operating temperatures: -40 to +70 °C. Useful life at 30 rpm: 1.0 million cycles/2.0 million revolutions (without detents), 100000. Cycles/200000 revolutions (with detents, 100.000 cycles (switch). Shaft length: 3/4 inch.
Without detent.
Technical attributes (type, pulses/rev, with/without switch): EM14A0D-C24-L064N, 64 pulses, without switch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | optical rotary encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 64 | |
| Length | 29.08 mm | |
| Assembly | PCB mounting | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85365015 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
