ECW1J-B24-BC0024L | Bourns Electronics GmbH
Incremental encoder, 10 V, impulses 24, ECW1J-B24-BC0024L
Unit Price (€ / pc.)
7.2114 € *
Available: 145 pcs.
Total Price:
7.21 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2114 €
10 pcs.
6.3427 €
90 pcs.
5.5573 €
180 pcs.
5.3431 €
1035 pcs.
4.8552 €
*incl. VAT plus shipping costs
Subject to prior sale
Incremental encoder, ECW1J-B24-BC0024L, Bourns Electronics GmbH

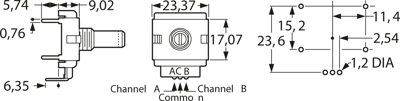

Bushing mount; Features: channel A with clockwise 90° phase offset leading channel B. Output: 2-bit Gray code, 24 pulse/rev. Resistance open/closed circuit: max. 5.0 ohm/min. 100 kohm. Contact rating: 10 mA at 10 VDC, max. 0.1 W. Speed: max. 120 rpm. Operating temperatures: -40 to +85 °C. Useful life: 200000 rotations. Degree of protection: IP 40. Dimension L: 24 mm.
For PCB mounting, with clip, type ECW..

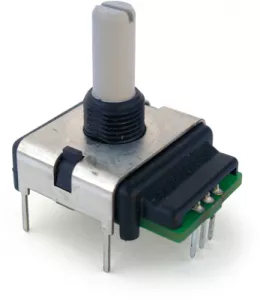

Type: ECW1J-B24-BC0024L, rotary encoder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | incremental encoder | |
| Voltage | 10 V | |
| Pulses per revolution | 24 | |
| Connection | solder pin | |
| Assembly | PCB mounting | |
| Length | 34.14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 45 pieces |
| Customs tariff number | 85365015 |
| Country of origin | MX |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
