SF-2923HC50C-2 | Bourns Electronics GmbH

SMD fuse SMD 2923, 50 A, HC, 60 V (DC), 300 A breaking capacity, SF-2923HC50C-2

Order No.: 50G3863
EAN: 4099889093704
MPN:
SF-2923HC50C-2
Series: SF-2923HC
SF-2923HC50C-2 Bourns Electronics GmbH Micro Fuses

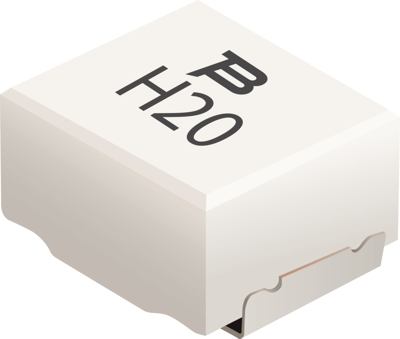

Image may differ
Unit Price (€ / pc.)
3.6057 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
3,605.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
3.6057 €

SMD-Fuse, SF-2923HC50C-2, BOURNS

The SF-2923HC50C-2 is a SMD Fuse to ease layout reduce product size enhance ruggedness. The thermally activated fuse is the oldest circuit protection device and is still in widespread use. It is well understood, reliable, consistent, and approved by regulatory standards.

Features

  • Single blow fuse for overcurrent protection
  • High current ceramic housing design
  • Surface mount packaging for automated assembly
  • RoHS-compatible and halogen free

Applications

  • Li-ion battery packs
  • Uninterruptible power supplies (UPS)
  • Electric assist bicycles
  • Power factor correction (PFC)
Technical specifications
Design SMD 2923
Version SMD fuse
Enclosure SMD
Rated current 50 A
Tripping characteristics HC
Rated voltage (DC) 60 V
Height 4 mm
Length 7.3 mm
Breaking capacity 300 A
Width 5.8 mm
Logistics
Customs tariff number 85361010
Country of origin TW
MSL MSL 1
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
