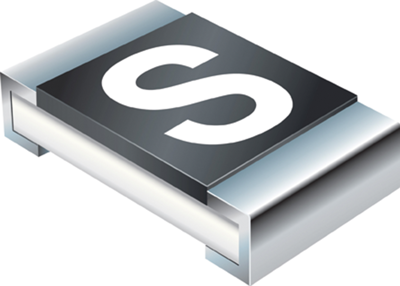

SMD fuse SMD 1206, 500 mA, T, 63 V (DC), 50 A breaking capacity, SF-1206S050-2
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 16 Weeks
SMD-Fuse, SF-1206S050-2, BOURNS
The SF-1206S050-2 is a SMT slow-blow fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Fast acting thin film chip fuse for overcurrent protection
- 3216 miniature footprint
- Surface mount packaging for automated assembly
- RoHS-compatible and halogen free
Applications
- Portable memory
- LCD monitors
- Rechargeable battery pack
- Industrial controllers
- Digital cameras
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Breaking capacity | 50 A | |
| Rated voltage (DC) | 63 V | |
| Length | 3.1 mm | |
| Design | SMD 1206 | |
| Rated current | 500 mA | |
| Width | 1.55 mm | |
| Height | 0.6 mm | |
| Enclosure | SMD | |
| Version | SMD fuse |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
