SF-0603S100M-2 | Bourns Electronics GmbH
SMD fuse SMD 0603, 1 A, T, 63 V (DC), 35 A breaking capacity, SF-0603S100M-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.6307 € *
Standard delivery time from the manufacturer is: 18 Weeks

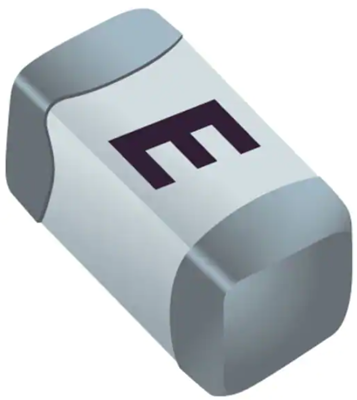

SMD-Fuse, SF-0603S100M-2, Bourns
Multilayer surface mount fuse provides effective overcurrent protection in standard surface mountable footprint sizes (0603) and includes a variety of fusing speeds, current and voltage ratings, and rated operating temperatures.
Features
- Single blow fuse for overcurrent protection
- Surface mount packaging for automated assembly
- 1608 (EIA 0603) miniature footprint
- Slow blow fuse
- UL 248-14 compliant
- Halogen free
Applications
- LCD monitors
- Battery chargers
- Digital cameras
- Industrial controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD fuse | |
| Design | SMD 0603 | |
| Enclosure | SMD | |
| Rated current | 1 A | |
| Tripping characteristics | T | |
| Rated voltage (DC) | 63 V | |
| Breaking capacity | 35 A | |
| Length | 1.6 mm | |
| Width | 0.8 mm | |
| Height | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
