SF-0603HI600M-2 | Bourns Electronics GmbH
SMD fuse SMD 0603, 6 A, TT, 32 V (DC), 80 A breaking capacity, SF-0603HI600M-2
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 18 Weeks

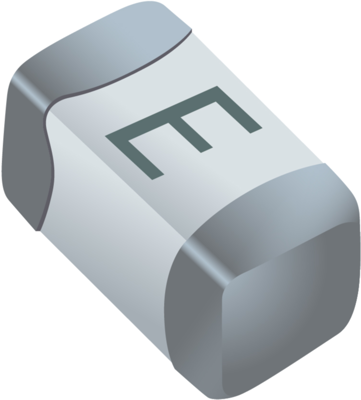

SMD-Fuse, SF-0603HI600M-2, Bourns
Features
- Single blow fuse for overcurrent protection
- 1608 (EIA 0603) miniature footprint
- High inrush current withstand fuse
- UL 248-14 listed
- RoHS compliant
- Multilayer SMD design
- Surface mount packaging for automated assembly
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 0603 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 6 A | |
| Tripping characteristics | TT | |
| Rated voltage (DC) | 32 V | |
| Height | 0.8 mm | |
| Length | 1.6 mm | |
| Breaking capacity | 80 A | |
| Width | 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
