2036-09-SM-RPLF | Bourns Electronics GmbH
3 electrode arrester, SMD, 90 V, 10 kA, 2036-09-SM-RPLF
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 9 Weeks

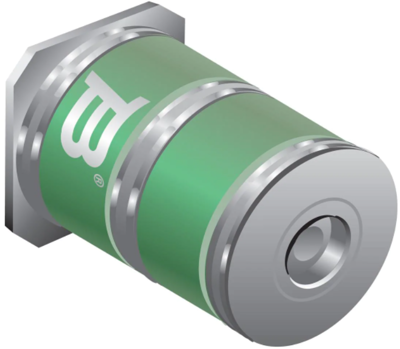

Gas discharge tube surge protector, 2036-09-SM-RPLF, Bourns
2036-09-SM-RPLF is ideal for board level protection of high bandwidth applications such as xDSL, cable broadband and high speed ethernet. It has high energy handling capability, long and stable life performance, low capacitance and measures only 5 mm in diameter.
Features
- Leadless, surface mount for economical assembly
- Ideal for board level protection of broadband circuits
- Stable breakdown throughout life
- High surge current rating, low insertion loss
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD | |
| Activation voltage | 90 V | |
| discharge current | 10 kA | |
| Number of arresters | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Original Packaging | Reel with 1,000 pieces |
| MSL | MSL 1 |
| Country of origin | CR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
