SRU1028-101Y | Bourns Electronics GmbH

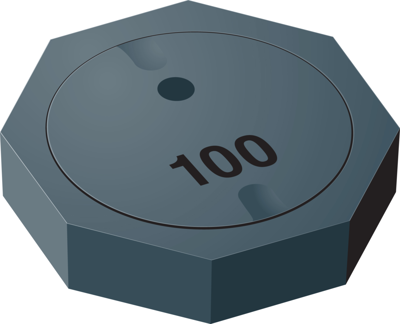

Power choke, SMD, 100 µH, 850 mA, SRU1028-101Y
Order No.: 05D7035
EAN: 4099889001129
MPN:
SRU1028-101Y
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power inductor, SRU1028-101Y, BOURNS
Features
- Shielded SMD
- Height of 2.8 mm
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communication equipment
- Camcorders
- LCD TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 100 µH | |
| DC current | 850 mA | |
| Tolerance | ±30 % | |
| DC resistance | 365 mΩ | |
| Saturation current | 850 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 20 | |
| Design | SMD | |
| Length | 10 mm | |
| Width | 10 mm | |
| Height | 2.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
