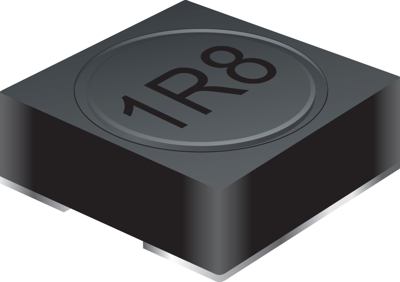

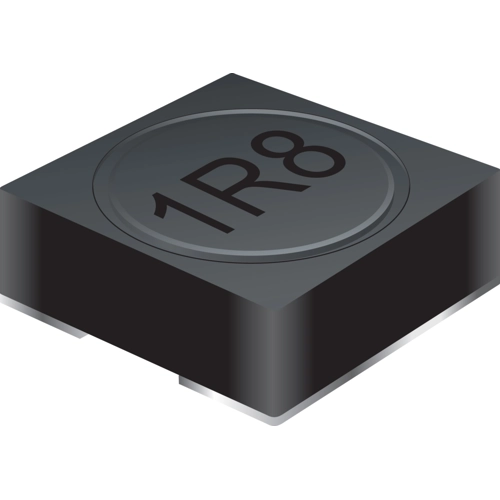

SRR4028-221Y | Bourns Electronics GmbH
Power choke, SMD 4028, 220 µH, 340 mA, SRR4028-221Y
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power inductor, SRR4028-221Y, BOURNS
Features
- Shielded SMD
- Height of 3.0 mm max.
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communication equipment
- Camcorders
- LCD TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 220 µH | |
| DC current | 340 mA | |
| Tolerance | ±30 % | |
| DC resistance | 1.25 Ω | |
| Saturation current | 200 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 11.3 | |
| Design | SMD 4028 | |
| Length | 4.8 mm | |
| Width | 4.8 mm | |
| Height | 2.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
