SRR1280-470M | Bourns Electronics GmbH

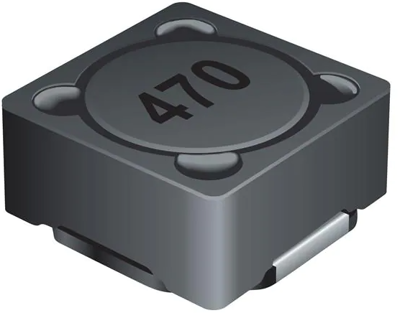

Power choke, SMD, 47 µH, SRR1280-470M
Unit Price (€ / pc.)
1.3328 € *
Available: 380 pcs.
Total Price:
13.33 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3328 €
50 pcs.
1.1781 €
250 pcs.
1.0115 €
1000 pcs.
0.8806 €
2500 pcs.
0.8092 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, SRR1280-470M, Bourns
Features
- Low inductance
- Ferrite core
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
- Car radios
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Saturation current | 2.8 A | |
| Design | SMD | |
| Width | 12.5 mm | |
| Quality Q | Q 24 | |
| Height | 7.5 mm | |
| Inductance | 47 µH | |
| Version | SMD choke | |
| Length | 12.5 mm | |
| DC resistance | 80 mΩ | |
| Measuring frequency | 2.52 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
