SRR1280-150M | Bourns Electronics GmbH

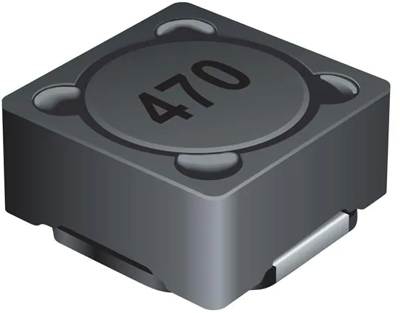

Power choke, SMD, 15 µH, SRR1280-150M
Unit Price (€ / pc.)
1.4875 € *
Available: 400 pcs.
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4875 €
10 pcs.
1.0710 €
100 pcs.
0.9163 €
500 pcs.
0.7973 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, SRR1280-150M, Bourns
Features
- Low inductance
- Ferrite core
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
- Car radios
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 26 | |
| Height | 7.5 mm | |
| Inductance | 15 µH | |
| Version | SMD choke | |
| Measuring frequency | 2.52 MHz | |
| DC resistance | 28.5 mΩ | |
| Saturation current | 5 A | |
| Tolerance | ±20 % | |
| Width | 12.5 mm | |
| Design | SMD | |
| Length | 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
