SRR1210A-101M | Bourns Electronics GmbH

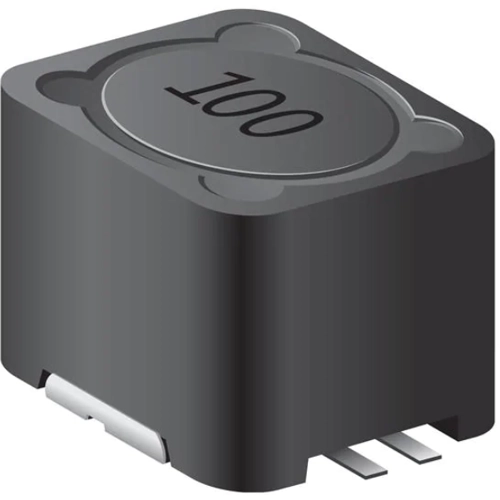

Power choke, SMD, 100 µH, SRR1210A-101M
Unit Price (€ / pc.)
0.9401 € *
Standard delivery time from the manufacturer is: 20 Weeks
Power inductor, SRR1210A-101M, Bourns
Features
- Shielded construction
- Ferrite core
- AEC-Q200 compliant
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Power supplies
- Automotive systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 100 µH | |
| Length | 12 mm | |
| Saturation current | 2.2 A | |
| Design | SMD | |
| DC resistance | 135 mΩ | |
| Tolerance | ±20 % | |
| Width | 12 mm | |
| Measuring frequency | 0.796 MHz | |
| Quality Q | Q 16 | |
| Height | 10 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
