SRR1210-220M | Bourns Electronics GmbH

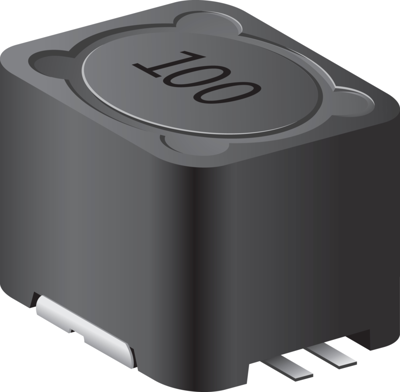

Power choke, SMD 1210, 22 µH, 5200 mA, SRR1210-220M
Unit Price (€ / pc.)
0.7973 € *
Standard delivery time from the manufacturer is: 20 Weeks
Power inductor, SRR1210-220M, BOURNS
Features
- Shielded SMD
- Height of 10 mm
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communication equipment
- Camcorders
- LCD TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 22 µH | |
| DC current | 5200 mA | |
| Tolerance | ±20 % | |
| DC resistance | 38 mΩ | |
| Saturation current | 4.5 A | |
| Measuring frequency | 2.52 MHz | |
| Quality Q | Q 16 | |
| Design | SMD 1210 | |
| Length | 12 mm | |
| Width | 12 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
