SRR1208-561KL | Bourns Electronics GmbH

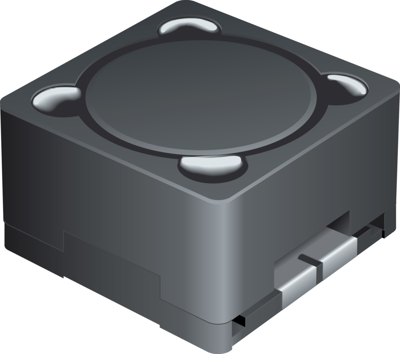

Power choke, SMD 1208, 560 µH, 650 mA, SRR1208-561KL
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power inductor, SRR1208-561KL, BOURNS
Features
- Unit height of 8.5 mm
- Ferrite core
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communication equipment
- Camcorders
- LCD TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 560 µH | |
| DC current | 650 mA | |
| Tolerance | ±10 % | |
| DC resistance | 900 mΩ | |
| Saturation current | 900 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 14 | |
| Design | SMD 1208 | |
| Length | 12.7 mm | |
| Width | 12.7 mm | |
| Height | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 400 pieces |
| Customs tariff number | 85045000 |
| Country of origin | CN |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
