SRP7050TA-4R7M | Bourns Electronics GmbH

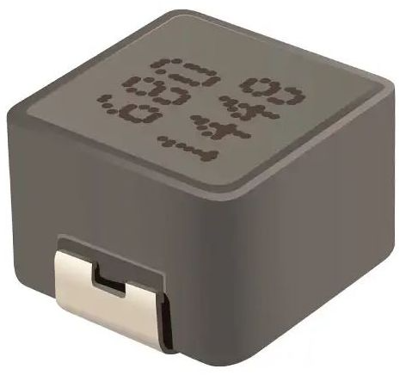

Power choke, SMD, 4.7 µH, SRP7050TA-4R7M
Order No.: 05D5561
EAN: 4099879997500
MPN:
SRP7050TA-4R7M
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 20 Weeks
Power inductor, SRP7050TA-4R7M, Bourns
Features
- Shielded construction
- Carbonyl powder core
- High saturation current
- AEC-Q200 compliant
- RoHS compliant
Applications
- DC/DC converters
- Power supplies
- Automotive systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 4.7 µH | |
| Length | 7.3 mm | |
| Saturation current | 10 A | |
| Design | SMD | |
| DC resistance | 30.8 mΩ | |
| Tolerance | ±20 % | |
| Width | 6.6 mm | |
| Measuring frequency | 100 kHz | |
| Quality Q | Q 15 | |
| Height | 4.8 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
