SRP7028A-1R0M | Bourns Electronics GmbH

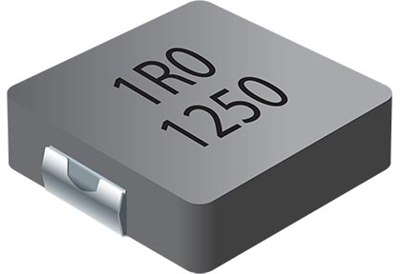

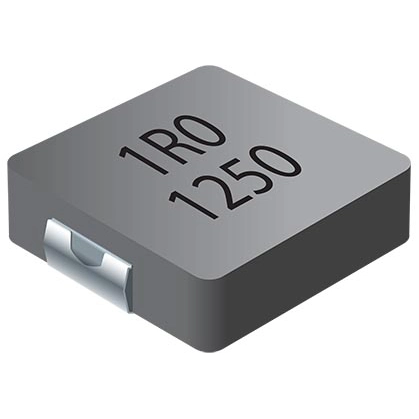

Power choke, SMD, 1 µH, SRP7028A-1R0M
Order No.: 05D5505
EAN: 4099879996985
MPN:
SRP7028A-1R0M
Unit Price (€ / pc.)
0.7854 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power inductor, SRP7028A-1R0M, Bourns
Features
- Shielded construction
- Carbonyl powder core
- High saturation current
- AEC-Q200 compliant
- RoHS compliant
Applications
- DC/DC converters
- Power supplies
- Automotive systems
Technical specifications
| Quality Q | Q 20 | |
| Saturation current | 22 A | |
| Width | 6.6 mm | |
| Height | 2.8 mm | |
| Length | 7.3 mm | |
| DC resistance | 10 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 1 µH |
Download
Logistics
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
