SRP1770TA-470M | Bourns Electronics GmbH

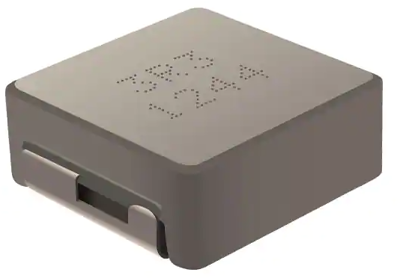

Power choke, SMD, 47 µH, SRP1770TA-470M
Order No.: 05D5599
EAN: 4099879997852
MPN:
SRP1770TA-470M
Unit Price (€ / pc.)
3.0107 € *
Standard delivery time from the manufacturer is: 18 Weeks
Power inductor, SRP1770TA-470M, Bourns
Features
- Shielded construction
- Carbonyl powder core
- High saturation current
- AEC-Q200 compliant
- RoHS compliant
Applications
- DC/DC converters
- Automotive systems
- Power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Length | 17.6 mm | |
| Saturation current | 16 A | |
| Design | SMD | |
| DC resistance | 55 mΩ | |
| Tolerance | ±20 % | |
| Width | 16.9 mm | |
| Measuring frequency | 100 kHz | |
| Quality Q | Q 20 | |
| Height | 6.7 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
