SRP1770TA-330M | Bourns Electronics GmbH

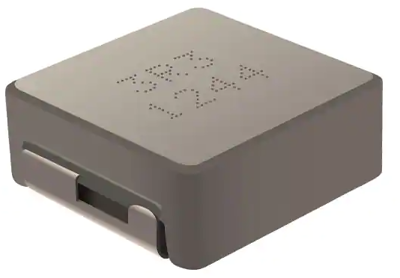

Power choke, SMD, 33 µH, SRP1770TA-330M
Order No.: 05D5598
EAN: 4099879997845
MPN:
SRP1770TA-330M
Unit Price (€ / pc.)
3.0107 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRP1770TA-330M, Bourns
Features
- Shielded construction
- Carbonyl powder core
- High saturation current
- AEC-Q200 compliant
- RoHS compliant
Applications
- DC/DC converters
- Automotive systems
- Power supplies
Technical specifications
| Quality Q | Q 20 | |
| Saturation current | 20 A | |
| Width | 16.9 mm | |
| Height | 6.7 mm | |
| Length | 17.6 mm | |
| DC resistance | 44 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 33 µH |
Download
Logistics
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
