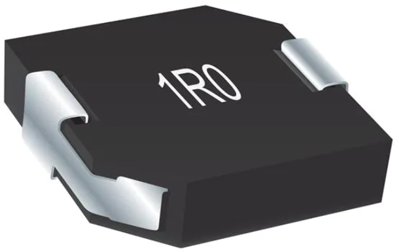

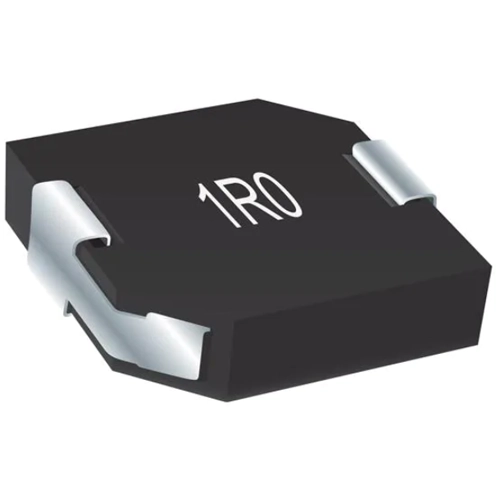

Power choke, SMD, 10 µH, SRP1270-100M

default S
default L
Total price
(1.84 € * / pcs.)
5.53 €
Available: 262 pcs.
Quantity
Price per unit*
3 pcs.
1.84 €
15 pcs.
1.58 €
75 pcs.
1.38 €
400 pcs.
1.24 €
800 pcs.
1.11 €
*incl. VAT plus shipping costs
Show 2 variants
Description

Product by Bourns Electronics GmbH at Bürklin Elektronik

Power inductor, SRP1270-100M, Bourns

Features

  • Shielded construction
  • Unit height of 7 mm
  • Iron core
  • RoHS compliant

Applications

  • Input/output of DC/DC converters
  • Portable communications equipment
  • Camcorders
  • LCD TVs
  • Car audio systems
Technical specifications
Version power choke
Design SMD
Width 13.7 mm
DC resistance 0.0168 Ω
Height 7 mm
Inductance 0.01 mH
Length 13.7 mm
Measuring frequency 0.1 MHz
Saturation current 16 A
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85045000
MSL MSL 1
Compliance
RoHS conform Yes
SVHC free Yes
Variations
1 item with 2 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC resistance
Power choke, SMD, 10 µH, SRP1270-100M
Order No.:
 05D5777
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 SRP1270-100M
3 pcs.
1.84 €
15 pcs.
1.58 €
75 pcs.
1.38 €
400 pcs.
1.24 €
800 pcs.
1.11 €
5.53 € *
Available: 262 pcs.
SMD
power choke
13.7 mm
13.7 mm
±20 %
7 mm
0.01 mH
0.0168 Ω
Power choke, SMD, 3.3 µH, SRP1270-3R3M
Order No.:
 05D5778
Manufacturer:
 Bourns Electronics GmbH
Manufacturer SKU
 SRP1270-3R3M
400 pcs.
0.92 €
0.00 € *
Currently not in stock, we will order for you
SMD
power choke
13.7 mm
13.7 mm
±20 %
7 mm
0.0033 mH
0.0066 Ω
