SRN8040-101M | Bourns Electronics GmbH

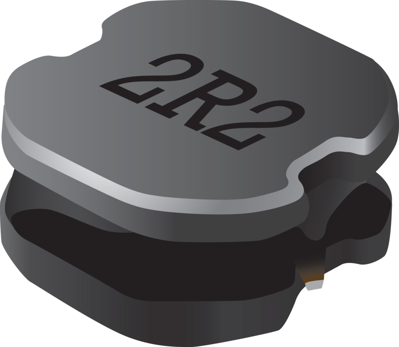

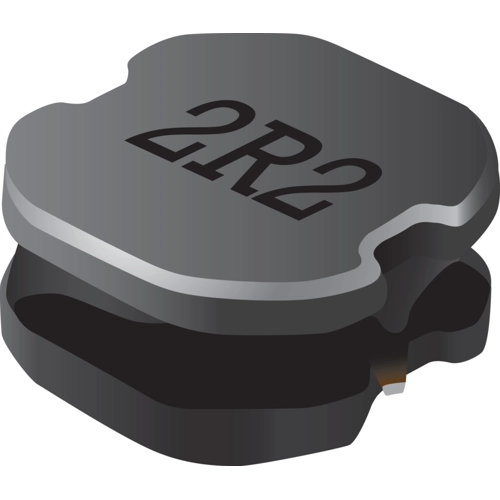

Power choke, SMD, 100 µH, 1000 mA, SRN8040-101M
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN8040-101M, BOURNS
Features
- Semi-shielded construction
- High rated current
- Component height 4 mm
- Halogen free
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Version | power choke | |
| Inductance | 100 µH | |
| DC current | 1000 mA | |
| Tolerance | ±20 % | |
| DC resistance | 400 mΩ | |
| Saturation current | 1 A | |
| Measuring frequency | 0.796 MHz | |
| Quality Q | Q 10 | |
| Design | SMD | |

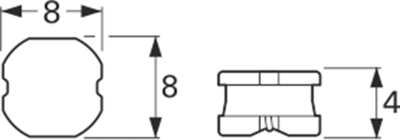

| Length | 8 mm | |
| Width | 8 mm | |
| Height | 4 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
