SRN6045TA-6R8M | Bourns Electronics GmbH
Power choke, SMD, 6.8 µH, SRN6045TA-6R8M
Unit Price (€ / pc.)
0.6129 € *
Available: 990 pcs.
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6129 €
10 pcs.
0.4379 €
100 pcs.
0.3641 €
500 pcs.
0.3177 €
1000 pcs.
0.2880 €
*incl. VAT plus shipping costs
Subject to prior sale

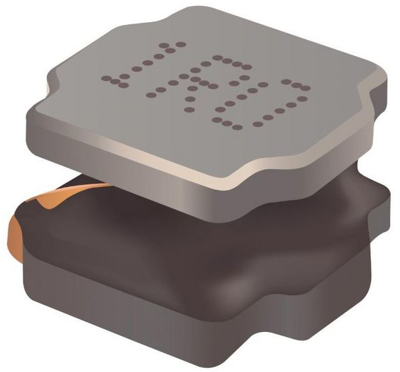

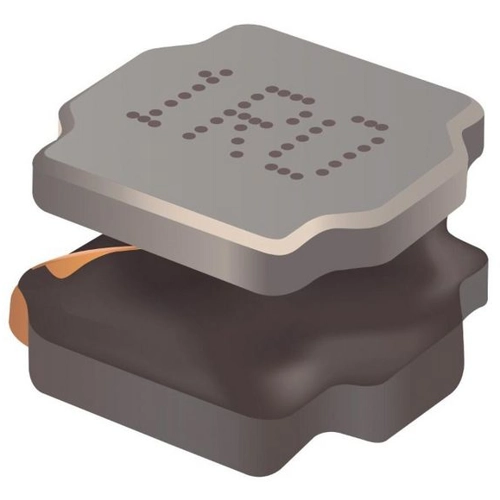

Power inductor, SRN6045TA-6R8M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- AEC-Q200 compliant
- RoHS compliant
- Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 34 mΩ | |
| Saturation current | 5.7 A | |
| Quality Q | Q 15 | |
| Tolerance | ±20 % | |
| Length | 6 mm | |
| Height | 4.2 mm | |
| Width | 6 mm | |
| Inductance | 6.8 µH | |
| Design | SMD | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
