SRN6045-101M | Bourns Electronics GmbH
Power choke, SMD, 100 µH, 700 mA, SRN6045-101M
Unit Price (€ / pc.)
0.1856 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN6045-101M, BOURNS
Features
- Semi-shielded construction
- High rated current
- Component height 4.5 mm
- Halogen free
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Version | power choke | |
| Inductance | 100 µH | |
| DC current | 700 mA | |
| Tolerance | ±20 % | |
| DC resistance | 494 mΩ | |
| Saturation current | 800 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 22 | |
| Design | SMD | |

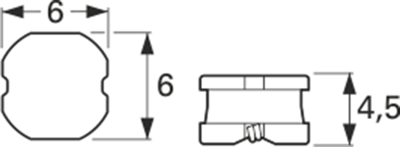

| Length | 6 mm | |
| Width | 6 mm | |
| Height | 4.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
