SRN5020-100M | Bourns Electronics GmbH

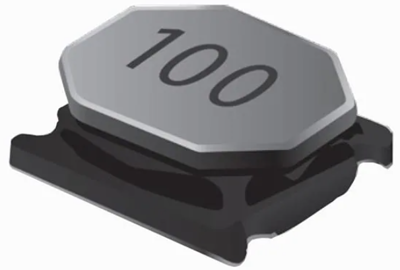

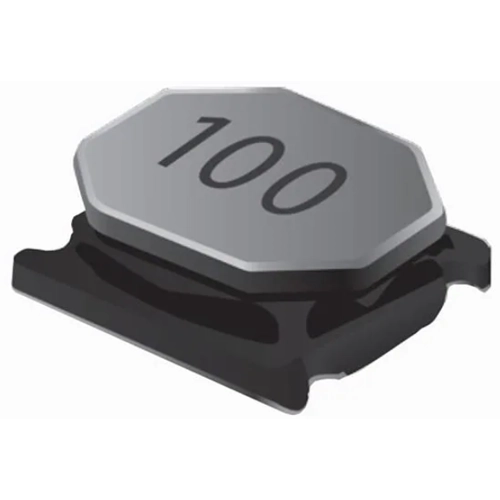

Power choke, SMD, 10 µH, SRN5020-100M
Order No.: 05D5686
EAN: 4099879998699
MPN:
SRN5020-100M
Unit Price (€ / pc.)
0.2713 € *
Standard delivery time from the manufacturer is: On Request
Power inductor, SRN5020-100M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- High rated current
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Quality Q | Q 11 | |
| Saturation current | 1.3 A | |
| Width | 5 mm | |
| Height | 2 mm | |
| Length | 5 mm | |
| DC resistance | 144 mΩ | |
| Measuring frequency | 2.52 MHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 10 µH |
Download
Logistics
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
