SRN4018TA-4R7M | Bourns Electronics GmbH

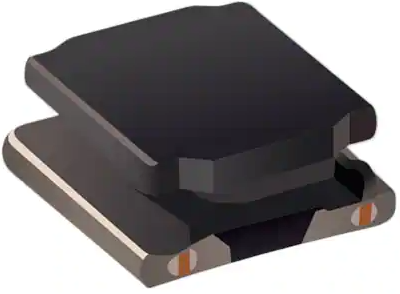

Power choke, SMD, 4.7 µH, SRN4018TA-4R7M
Order No.: 05D5521
EAN: 4099879997128
MPN:
SRN4018TA-4R7M
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN4018TA-4R7M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- AEC-Q200 compliant
- RoHS compliant
- Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 4.7 µH | |
| Length | 4 mm | |
| Saturation current | 2 A | |
| Design | SMD | |
| DC resistance | 70 mΩ | |
| Tolerance | ±20 % | |
| Width | 4 mm | |
| Height | 1.8 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
