SRN4018TA-330M | Bourns Electronics GmbH

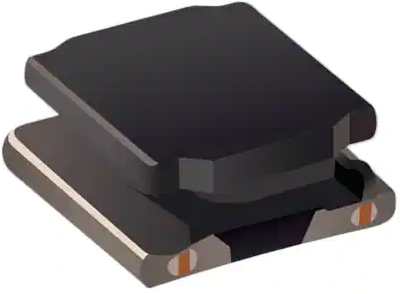

Power choke, SMD, 33 µH, SRN4018TA-330M
Order No.: 05D5518
EAN: 4099879997104
MPN:
SRN4018TA-330M
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN4018TA-330M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- AEC-Q200 compliant
- RoHS compliant
- Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Width | 4 mm | |
| Length | 4 mm | |
| Design | SMD | |
| Saturation current | 0.75 A | |
| Height | 1.8 mm | |
| Tolerance | ±20 % | |
| Inductance | 33 µH | |
| DC resistance | 405 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
