SRN4018-101M | Bourns Electronics GmbH

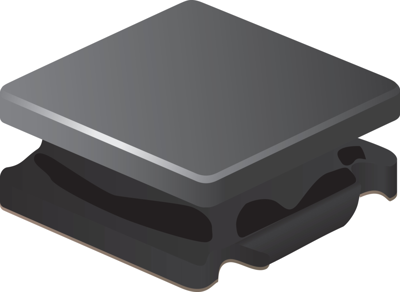

Power choke, SMD 4018, 100 µH, 420 mA, SRN4018-101M
Order No.: 76D8204
EAN: 4099889044867
MPN:
SRN4018-101M
Unit Price (€ / pc.)
0.2535 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN4018-101M, BOURNS
Features
- Semi-shielded construction
- Miniature size
- Low profile: 1.8 mm
- Halogen free
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 100 µH | |
| DC current | 420 mA | |
| Tolerance | ±20 % | |
| DC resistance | 1.596 Ω | |
| Saturation current | 420 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 23 | |
| Design | SMD 4018 | |

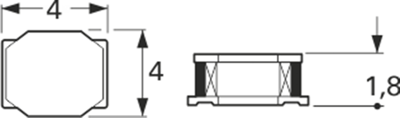

| Length | 4 mm | |
| Width | 4 mm | |
| Height | 1.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
