SRN3015-1R0Y | Bourns Electronics GmbH

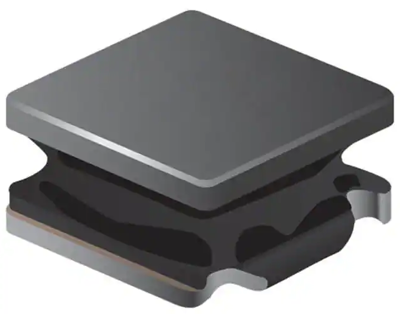

Power choke, SMD, 1 µH, SRN3015-1R0Y
Unit Price (€ / pc.)
0.2142 € *
Standard delivery time from the manufacturer is: 22 Weeks
Power inductor, SRN3015-1R0Y, Bourns
Features
- Semi-shielded construction
- Ferrite core
- Component height 1.5 mm
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- HDDs, cellphones
- Televisions, LCD displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1 µH | |
| Length | 3 mm | |
| Saturation current | 2.35 A | |
| Design | SMD | |
| DC resistance | 48 mΩ | |
| Tolerance | ±30 % | |
| Width | 3 mm | |
| Measuring frequency | 7.96 MHz | |
| Quality Q | Q 16 | |
| Height | 1.5 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
