SRN3012TA-100M | Bourns Electronics GmbH

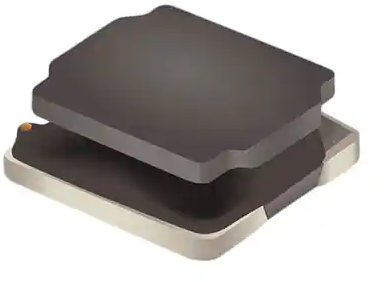

Power choke, SMD, 10 µH, SRN3012TA-100M
Order No.: 05D5884
EAN: 4099889000535
MPN:
SRN3012TA-100M
Unit Price (€ / pc.)
0.2166 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power inductor, SRN3012TA-100M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- AEC-Q200 compliant
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- HDDs, cellphones
- Televisions, LCD displays
Technical specifications
| Quality Q | Q 20 | |
| Saturation current | 0.76 A | |
| Width | 3 mm | |
| Height | 1.2 mm | |
| Length | 3 mm | |
| DC resistance | 245 mΩ | |
| Measuring frequency | 1 MHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 10 µH |
Download
Logistics
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
